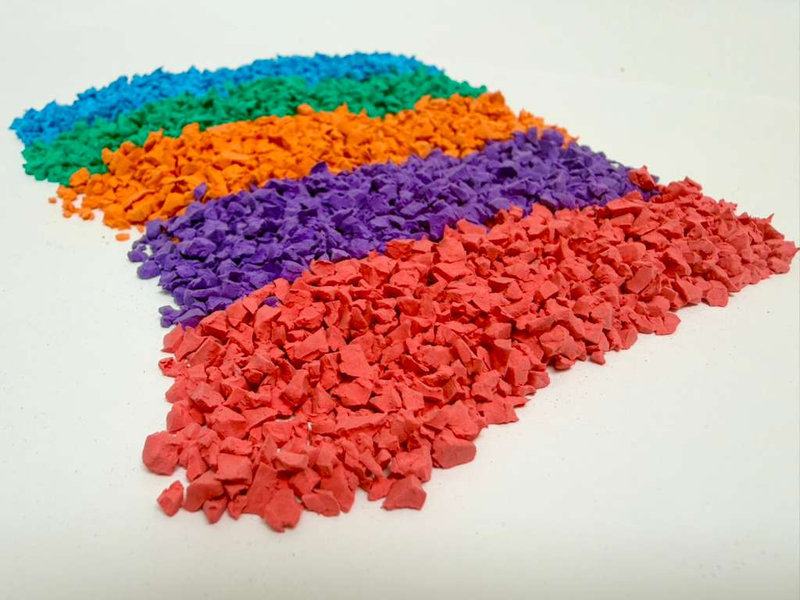

EPDM Colored Granules
Product Description
Premium EPDM rubber granules engineered for sports surfaces, playgrounds, recreational areas, and specialty flooring applications. Crafted from Ethylene Propylene Diene Monomer (EPDM), each granule is peroxide or sulphur cross-linked for superior durability, elasticity, and long-lasting colour retention.
Designed to perform where it matters most, our EPDM granules deliver consistent shock absorption, weather resistance, and UV stability across a wide range of climates and conditions. Their angular grain cut and low dust content make them ideal for both new installations and surface refurbishments.
The result is a surface that stays safer, looks better, and lasts longer — giving end users peace of mind and installers a product they can stand behind with confidence.
Benefits & Features
- >20% pure EPDM polymer content
- UV-stable colour — DTDM cured
- Precise sieve curve — 1.0–4.0 mm grain
- Non-toxic & safe — PAH-free, RoHS
- TÜV certified — REACH, EN 71-3
- Low dust content — maximum coverage
- Robust & elastic — 450% elongation

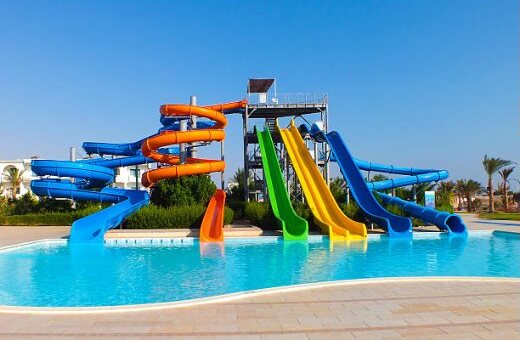

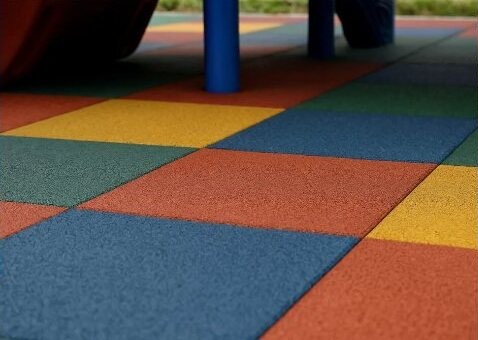

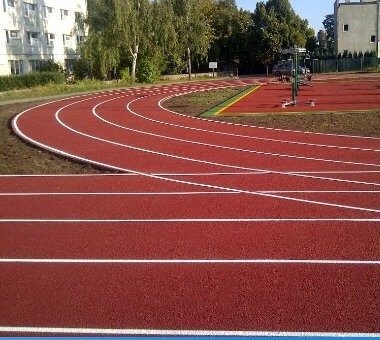

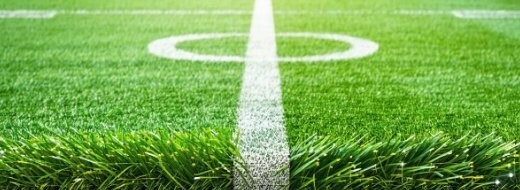

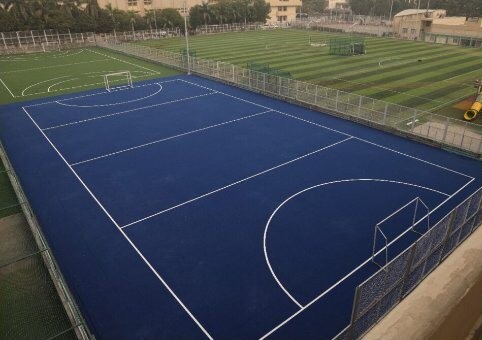

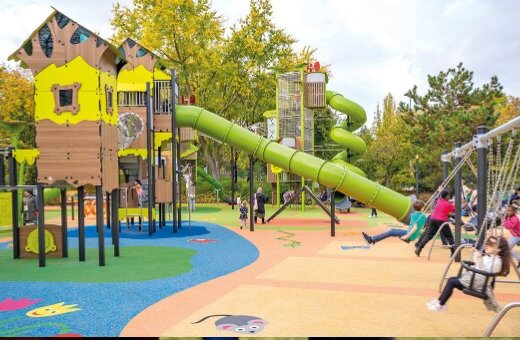

Applications
Color Palette
In addition to our standard palette of 18 colours, custom colour blending is available on request. Custom orders require a bulk-quantity commitment and a lead time of up to 3 months. To ensure correct colour selection, please request sample materials or contact info@futureopp.com.
Red 1
Grey 10
Orange 60
Spring Green 42
Chocolate 80
White 70
Slate Grey 11
Army Green 43
Purple 50
Light Blue 31
Yellow 20
Pink 2
Beige 15
Lime Green 41
Terracotta Red 0
Dark Blue 30
Teal 40
Golden Yellow 21 General Properties
| Property | Typical Value |
|---|---|
| Base Polymer | EPDM (Ethylene Propylene Diene Terpolymer) |
| Polymer Content | > 20% (only EPDM) |
| Grain Shape | Angular Cut |
| Grain Size | 1.0 – 4.0 mm |
| Grain Distribution | Graph available upon request |
Physical Properties
| Property | Unit | Value | Test Standard |
|---|---|---|---|
| Polymer Identification (FT-IR) | - | Pass | NF P 90-112 (2023) |
| Particle Shape | - | A2 | EN 14955 |
| Polymer Content (by TGA) | % by wt | 27.4 | ASTM E-1131 |
| Thermogravimetric Analysis (TGA) | % | 36.8 | ISO 9924-1 |
| Ash Content | % by wt | 68.1 | ASTM E-1131 |
| Density | g/cc | 1.68 | ASTM D-297 |
| Bulk Density | g/cm³ | 0.560 | EN 1097-3 |
| Low Boiling Materials (by TGA) | % by wt | 4.5 | ASTM E-1131 |
| Tensile Strength (before ageing) | kg/cm² | 33 | ASTM D-412 Type C |
| Elongation at Break (before ageing) | % | 450 | ASTM D-412 Type C |
| Hardness (before ageing) | Shore A | 72 | ASTM D-2240 |
| ENB | % by wt | 5.0 | ASTM D6047 (mod) |
| EP Ratio | % by wt | 69.0 | ASTM D3900A |
| Mooney Viscosity | % by wt | 72 | ASTM D1646 (mod) |
Test Reports & Certifications
| Test / Standard | Result | Laboratory |
|---|---|---|
| RoHS Directive | Pass | TUV NORD |
| BS EN 71-3:2019 – Migration of certain elements | Pass | TUV NORD |
| PAH (AFPS GS 2019:01 PAK) | Pass | TUV NORD |
| REACH – 219 SVHC EC-1907/2006 | Pass | TUV NORD |
| Identification NF P 90-112 (2023) | Pass | LABOSPORT |
| Extractable Organic Halides (EOX) NF P 90-112 (2023) | Pass | LABOSPORT |
| Heavy Metals Risk by Ingestion NF EN 71-3 (Cat III) | Pass | LABOSPORT |
Storage & Handling
Keep the material dry at all times and away from direct UV rays while storing. Keep in a cool, well-ventilated area, and keep the packaging dry and well-sealed to avoid contamination and humidity absorption.
To compensate for minor colour variations (from natural ingredients), mix materials from different batches together during installation — no two batches will be colour-matched identically. Please follow any additional product information before using this product.
Packaging

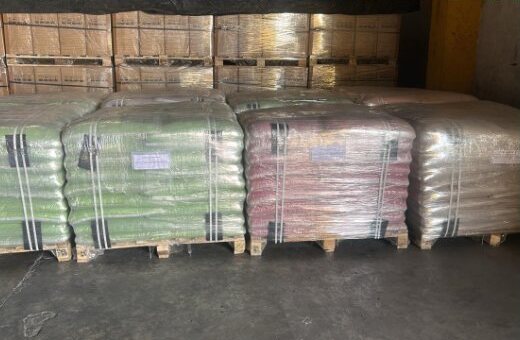

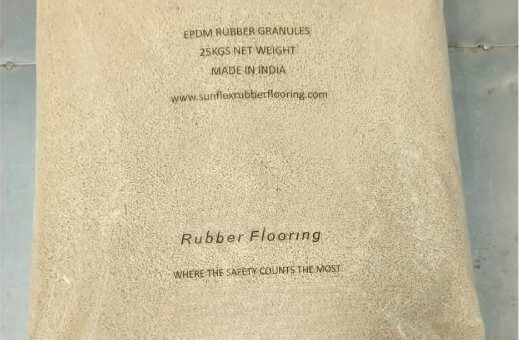

- 25 kg / 55 lb PP clear bags on 1,000 kg four-way wood pallets
- Alternative customization options available on request
For additional information please email us: info@futureopp.com
